ISO Cylinder
Description

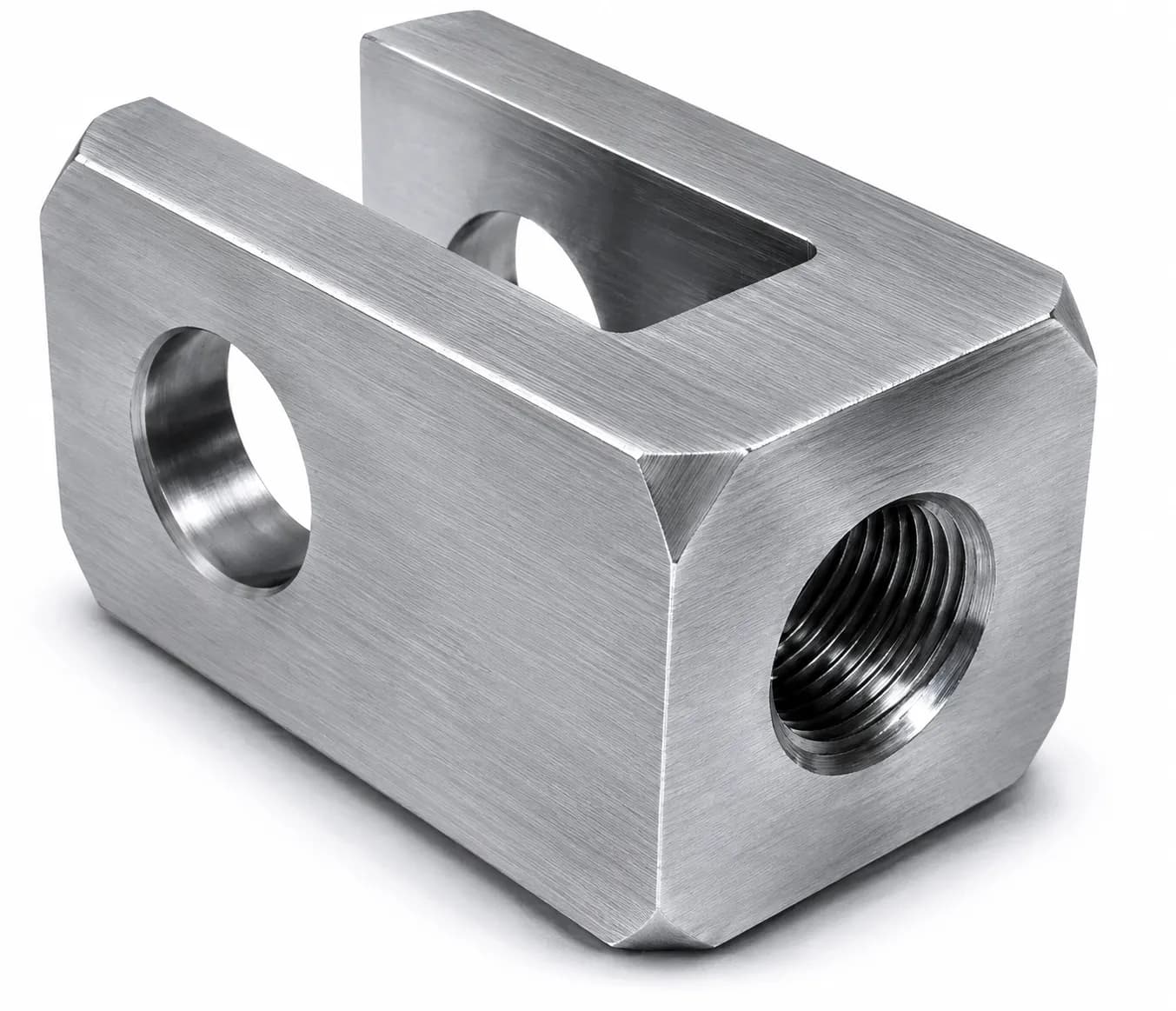

Threaded fork clevis connections
Category
ISO Cylinder
Product Code
#BY.TF.
Available main materials
Specification Parameters
Scroll horizontally to view all specification parameters.
| CODE | L | L1 | L2 | A | d | S | CM | F |
|---|---|---|---|---|---|---|---|---|
| BY.TF.16 | 55 | 24 | 16 | 39 | 16.20 | 35 | 16.20 | M16*1.5 |
| BY.TF.20 | 65 | 30 | 20 | 45 | 20.25 | 40 | 20.20 | M20*1.5 |
| BY.TF.25 | 70 | 30 | 20 | 50 | 25.25 | 50 | 25.20 | M24*2 |
| BY.TF.30 | 90 | 35 | 25 | 65 | 30.25 | 60 | 30.20 | M30*2 |
| BY.TF.35 | 105 | 40 | 30 | 75 | 35.25 | 70 | 35.20 | M33*2 |
Showing 5 variants • All dimensions in mm unless otherwise specified
