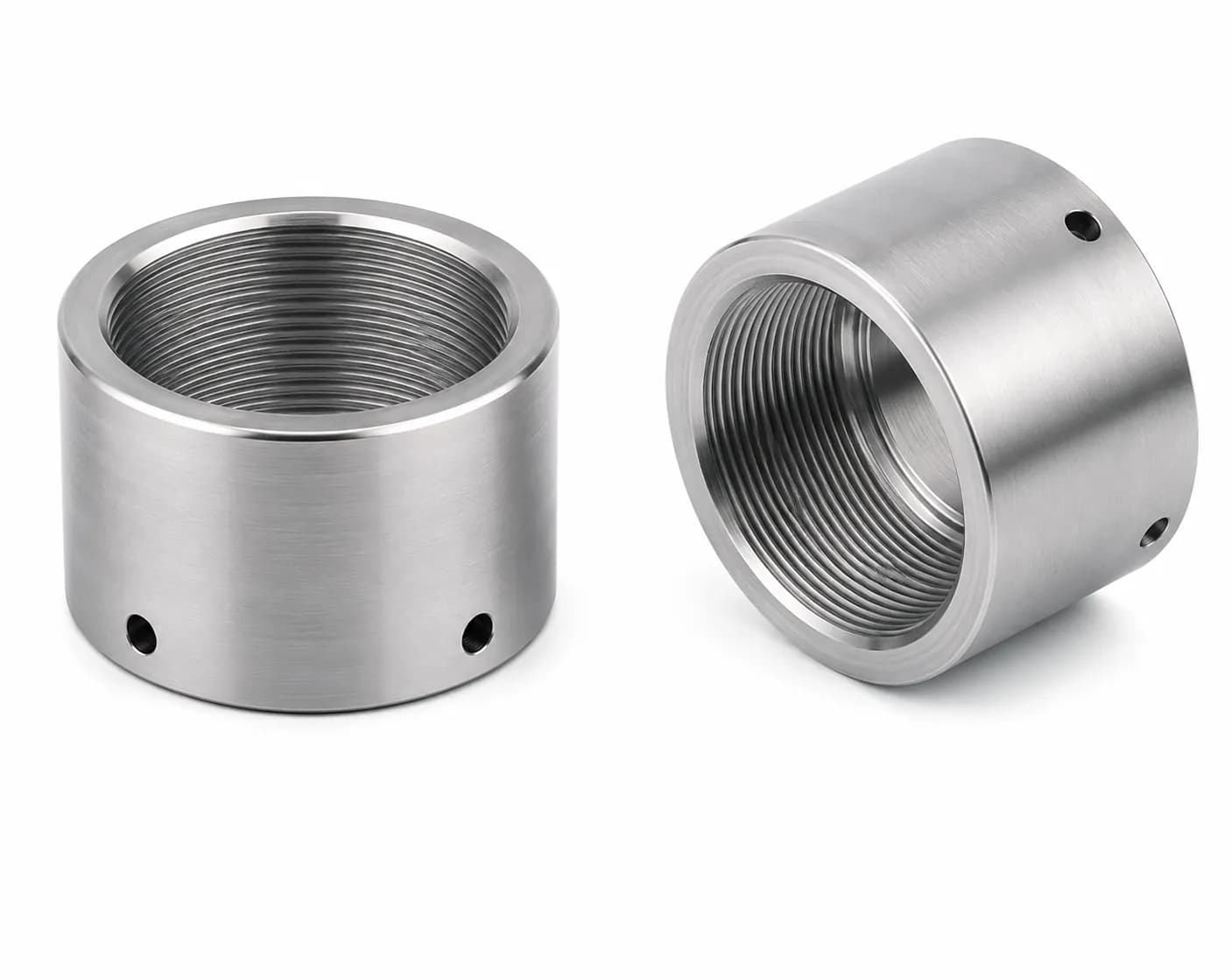

Mobile Crane Rod Nut

Name: Mobile Crane Rod Nut
Brand: Farteks
SKU: GDC-S-

mobile crane components

MC#GDC-S-

Specifications Overview

Description

Rod nuts for mobile crane assemblies

Scroll horizontally to view all specification parameters.

CODE	M	L	L1	D	D1	kg
GDC-S-50x65 NUT	M.64x2	50mm	38	85	46	0.800
GDC-S-63x75 NUT	M.74x2	60mm	45	95	60.5	1.000
GDC-S-70x85 NUT	M.84x2	60mm	45	105	70.5	1.760
GDC-S-80x95 NUT	M.94x2	60mm	45	115	75.5	1.790
GDC-S-90x105 NUT	M.104x2	70mm	55	125	85.5	2.400
GDC-S-90x110 NUT	M.109x2	70mm	55	130	85.5	2.580
GDC-S-100x115 NUT	M.114x2	70mm	55	135	95.5	2.350
GDC-S-100x120 NUT	M.119x2	70mm	55	140	95.5	2.530
GDC-S-110x130 NUT	M.129x2	70mm	55	150	100.5	3.040
GDC-S-115x130 NUT	M.129x2	70mm	55	150	100.5	3.040
GDC-S-120x140 NUT	M.139x2	70mm	55	160	110.5	2.960
GDC-S-125x145 NUT	M.144x2	70mm	55	165	115.5	3.500
GDC-S-130x150 NUT	M149x2	70mm	55	170	125.5	3.020
GDC-S-140x160 NUT	M.159x2	70mm	55	180	130.5	3.540

Showing 14 variants • All dimensions in mm unless otherwise specified
