ISO Cylinder
Description

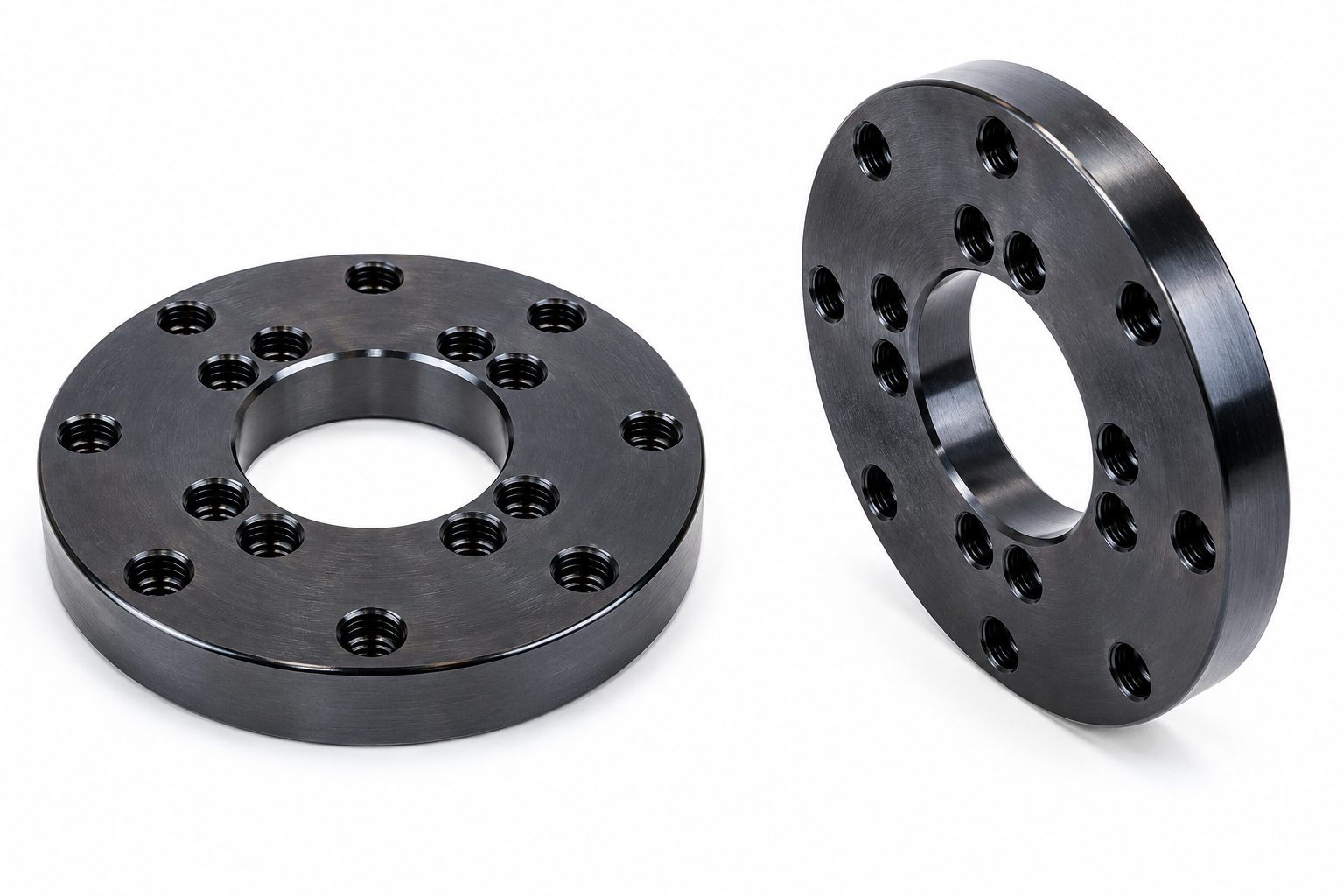

Flanges for cylinder mounting
Category
ISO Cylinder
Product Code
#BY.FL.
Available main materials
Specification Parameters
Scroll horizontally to view all specification parameters.
| CODE | D | S | d | d1 | d2 | d3 | d4 |
|---|---|---|---|---|---|---|---|
| BY.FL.40 | 125 | 15 | 50 | 7 | 11 | 64 | 106 |
| BY.FL.50 | 148 | 20 | 60 | 9 | 13.5 | 76.5 | 126 |
| BY.FL.63 | 170 | 25 | 70 | 11 | 17 | 93 | 145 |
| BY.FL.70 | 185 | 25 | 75 | 13 | 17 | 99 | 160 |
| BY.FL.80 | 195 | 32 | 85 | 13 | 19 | 110 | 165 |
| BY.FL.100 | 238 | 32 | 106 | 15 | 22 | 140 | 200 |
Showing 6 variants • All dimensions in mm unless otherwise specified
