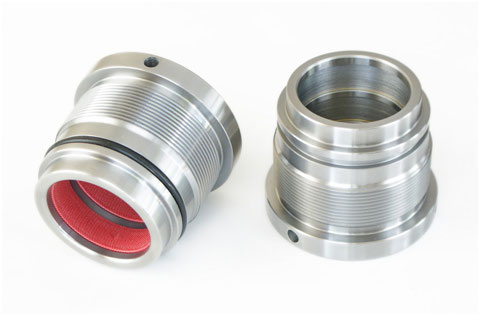

SAE 1050 / SAE 1040 QUALITY GRADE STEEL HYDRAULIC CYLINDER GLAND

SAE 1050 / SAE 1040 QUALITY GRADE STEEL HYDRAULIC CYLINDER GLAND SAE 1050 / SAE 1040 QUALITY GRADE STEEL HYDRAULIC CYLINDER GLAND

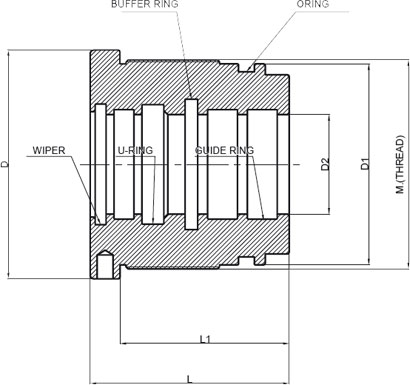

Code 1.Guide Ring 2.Guide Ring U-Ring Wiper BufferRing Support Ring Oring D D1 D2 L L1 Thread Kg
GDC-ÇB 40x20 20x24x9.5-1 - 20x28x5 20x28x5/7 - 36.4x41x1.25 36x3 50 41 21 50 40 44x1.5 0,38 kg
GDC-ÇB 40x22 22x26x9.5-1 - 22x30x5 22x30x5/7 - 36.4x41x1.25 36x3 50 41 23 50 40 44x1.5 0,34 kg
GDC-ÇB 40x25 25x29x9.5-1 - 25x35x6 25x33x5/7 - 36.4x41x1.25 36x3 50 41 26 50 40 44x1.5 0,29 kg
GDC-ÇB 40x28 28x32x9.5-1 - 28x38x6 28x36x5/7 - 36.4x41x1.25 36x3 50 41 29 50 40 44x1.5 0,31 kg
GDC-ÇB 50x25 25x29x9.5-1 - 25x35x6 25x33x5/7 - 45.5x51x1.25 44.45x3.53 60 51 26 50 40 54x1.5 0,56 kg
GDC-ÇB 50x28 28x32x9.5-1 - 28x38x6 28x36x5/7 - 45.5x51x1.25 44.45x3.53 60 51 29 50 40 54x1.5 0,51 kg
GDC-ÇB 50x30 30x35x15-1 - 30x40x8 30x38x5/7 - 45.5x51x1.25 44.45x3.53 60 51 31 50 40 54x1.5 0,44 kg
GDC-ÇB 50x35 35x40x15-1 - 35x45x8 35x43x5/7 - 45.5x51x1.25 44.45x3.53 60 51 36 50 40 54x1.5 0,33 kg
GDC-ÇB 55x30 30x35x15-1 - 30x40x8 30x38x5/7 - 50.5x56x1.25 50x3.53 65 56 31 50 40 59x1.5 0,425 kg
GDC-ÇB 55x35 35x40x15-1 - 35x45x8 35x43x5/7 - 50.5x56x1.25 50x3.53 65 56 36 50 40 59x1.5 0,50 kg
GDC-ÇB 60x30 30x35x15-2 - 30x40x8 30x38x5/7 - 55.5x61x1.25 53.57x3.53 70 61 31 70 58 65x1.5 1,10 kg
GDC-ÇB 60x35 35x40x15-2 - 35x45x8 35x43x5/7 - 55.5x61x1.25 53.57x3.53 70 61 36 70 58 65x1.5 0,98 kg
GDC-ÇB 60x40 40x45x15-2 - 40x50x10 40x48x5/7 - 55.5x61x1.25 53.57x3.53 70 61 41 70 58 65x1.5 0,78 kg
GDC-ÇB 60x45 45x50x15-2 - 45x55x10 45xx55x5/7 - 55.5x61x1.25 53.57x3.53 70 61 46 70 58 65x1.5 0,59 kg
GDC-ÇB 63x30 30x35x15-2   30x40x8 30x38x5/7 - 58.5x64x1.25 57.15x3.53 75 64 31 70 58 69x1.5 1,34 kg
GDC-ÇB 63x35 35x40x15-2 - 35x45x8 35x43x5/7 - 58.5x64x1.25 57.15x3.53 75 64 36 70 58 69x1.5 1,13 kg
GDC-ÇB 63x40 40x45x15-2 - 40x50x10 40x48x5/7 - 58.5x64x1.25 57.15x3.53 75 64 41 70 58 69x1.5 0,99 kg
GDC-ÇB 63x45 45x50x15-2   45x55x10 45xx55x5/7 - 58.5x64x1.25 57.15x3.53 75 64 46 70 58 69x1.5 0,79 kg
GDC-ÇB 65x30 30x35x15-2 - 30x40x8 30x38x5/7 - 60.5x66x1.25 59.92x3.53 80 66 31 70 58 69x1.5 1,44 kg
GDC-ÇB 65x35 35x40x15-2 - 35x45x8 35x43x5/7 - 60.5x66x1.25 59.92x3.53 80 66 36 70 58 69x1.5 1,20 kg
GDC-ÇB 65x40 40x45x15-2 - 40x50x10 40x48x5/7 - 60.5x66x1.25 59.92x3.53 80 66 41 70 58 69x1.5 0,99 kg
GDC-ÇB 65x45 45x50x15-2 - 45x55x10 45xx55x5/7 - 60.5x66x1.25 59.92x3.53 80 66 46 70 58 69x1.5 0,89 kg
GDC-ÇB 70x30 30x35x15-2 - 30x40x8 30x38x5/7 - 65.5x71x1.25 65.10x3.53 85 71 31 70 58 75x2 1,90 kg
GDC-ÇB 70x35 35x40x15-2   35x45x8 35x43x5/7 - 65.5x71x1.25 65.10x3.53 85 71 36 70 58 75x2 1,59 kg
GDC-ÇB 70x40 40x45x9.5-2 - 40x50x10 40x48x5/7 40x55.5 65.5x71x1.25 65.10x3.53 85 71 41 70 58 75x2 1,37 kg
GDC-ÇB 70x45 45x50x9.5-2 - 45x55x10 45xx55x5/7 45x60.5 65.5x71x1.25 65.10x3.53 85 71 46 70 58 75x2 1,15 kg
GDC-ÇB 70x50 50x55x15-2 - 50x60x10 50x60x5/7 - 65.5x71x1.25 65.10x3.53 85 71 51 70 58 75x2 0,97 kg
GDC-ÇB 70x55 55x60x15-2 - 55x65x10 55x65x5/7 - 65.5x71x1.25 65.10x3.53 85 71 56 70 58 75x2 0,75 kg
GDC-ÇB 75x40 40x45x9.5-2 - 40x50x10 40x48x5/7 40x55.5 70.5x76x1.25 69.85x3.53 90 76 41 70 58 80x2 1,69 kg
GDC-ÇB 75x45 45x50x9.5-2 - 45x55x10 45xx55x5/7 45x60.5 70.5x76x1.25 69.85x3.53 90 76 46 70 58 80x2 1,48 kg
GDC-ÇB 75x50 50x55x9.5-2 - 50x60x10 50x60x5/7 50x65.5 70.5x76x1.25 69.85x3.53 90 76 51 70 58 80x2 1,45 kg
GDC-ÇB 75x55 55x60x15-2 - 55x65x10 55x65x5/7 - 70.5x76x1.25 69.85x3.53 90 76 56 70 58 80x2 1,03 kg
GDC-ÇB 80x30 30x35x15-2 - 30x40x8 30x38x5/7 - 75.5x81x1.25 73.03x3.53 95 81 31 70 58 85x2 2,58 kg
GDC-ÇB 80x35 35x40x15-2 - 35x45x8 35x43x5/7 - 75.5x81x1.25 73.03x3.53 95 81 36 70 58 85x2 2,25 kg
GDC-ÇB 80x40 40x45x9.5-2 - 40x50x10 40x48x5/7 40x55.5 75.5x81x1.25 73.03x3.53 95 81 41 70 58 85x2 2,03 kg
GDC-ÇB 80x45 45x50x9.5-2 - 45x55x10 45xx55x5/7 45x60.5 75.5x81x1.25 73.03x3.53 95 81 46 70 58 85x2 1,82 kg
GDC-ÇB 80x50 50x55x9.5-2 - 50x60x10 50x60x5/7 50x65.5 75.5x81x1.25 73.03x3.53 95 81 51 70 58 85x2 1,59 kg
GDC-ÇB 80x55 55x60x9.5-2 - 55x65x10 55x65x5/7 - 75.5x81x1.25 73.03x3.53 95 81 56 70 58 85x2 1,39 kg
GDC-ÇB 80x60 60x65x15-2 - 60x70x10 60x70x5/7 - 75.5x81x1.25 73.03x3.53 95 81 61 70 58 85x2 1,12 kg
GDC-ÇB 85x40 40x45x9.5-2 - 40x50x10 40x48x5/7 40x55.5 79.7x86x1.40 78x4 100 86 41 70 58 90x2 2,41 kg
GDC-ÇB 85x45 45x50x9.5-2 - 45x55x10 45xx55x5/7 45x60.5 79.7x86x1.40 78x4 100 86 46 70 58 90x2 2,20 kg
GDC-ÇB 85x50 50x55x9.5-2 - 50x60x10 50x60x5/7 50x65.5 79.7x86x1.40 78x4 100 86 51 70 58 90x2 1,98 kg
GDC-ÇB 85x60 60x65x9.5-2 - 60x70x10 60x70x5/7 60x75.5 79.7x86x1.40 78x4 100 86 61 70 58 90x2 1,45 kg
GDC-ÇB 90x40 40x45x9.5-2 - 40x50x10 40x48x5/7 40x55.5 84.7x91x1.40 84x4 105 91 41 70 58 95x2 2,80 kg
GDC-ÇB 90x45 45x50x9.5-2 - 45x55x10 45xx55x5/7 45x60.5 84.7x91x1.40 84x4 105 91 46 70 58 95x2 2,58 kg
GDC-ÇB 90x50 50x55x9.5-2 - 50x60x10 50x60x5/7 50x65.5 84.7x91x1.40 84x4 105 91 51 70 58 95x2 2,35 kg
GDC-ÇB 90x55 55x60x9.5-2 - 55x65x10 55x65x5/7 55x70.5 84.7x91x1.40 84x4 105 91 56 70 58 95x2 2,10 kg
GDC-ÇB 90x60 60x65x9.5-2 - 60x70x10 60x70x5/7 60x75.5 84.7x91x1.40 84x4 105 91 61 70 58 95x2 1,83 kg
GDC-ÇB90x70 70x75x15-2 - 70x80x12 70x80x5/7 - 84.7x91x1.40 84x4 105 91 71 70 58 95x2 1,26 kg
GDC-ÇB 100x35 35x40x15-2 35x40x9.5-1 35x45x8 35x43x5/7 - 93x101x1.65 90x5 115 101 36 100 85 107x2 6,05 kg
GDC-ÇB 100x40 40x45x15-2 40x45x9.5-1 40x50x10 40x48x5/7 40x55.5 93x101x1.65 90x5 115 101 41 100 85 107x2 5,38 kg
GDC-ÇB 100x50 50x55x15-2 50x55x9.5-1 50x60x10 50x60x5/7 50x65.5 93x101x1.65 90x5 115 101 51 100 85 107x2 4,69 kg
GDC-ÇB 100x55 55x60x15-2 55x60x9.5-1 55x65x10 55x65x5/7 - 93x101x1.65 90x5 115 101 56 100 85 107x2 4,34 kg
GDC-ÇB 100x60 60x65x15-2 60x65x9.5-1 60x70x10 60x70x5/7 60x75.5 93x101x1.65 90x5 115 101 61 100 85 107x2 3,96 kg
GDC-ÇB 100x65 65x70x15-2 65x70x9.5-1 65x75x10 65x75x5/7 65x80.5 93x101x1.65 90x5 115 101 66 100 85 107x2 3,54 kg
GDC-ÇB 100x70 70x75x15-2 70x75x9.5-1 70x80x12 70x80x5/7 70x85.5 93x101x1.65 90x5 115 101 71 100 85 107x2 3,08 kg
GDC-ÇB 100x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 - 93x101x1.65 90x5 115 101 81 100 85 107x2 2,20 kg
GDC-ÇB 110x50 50x55x15-2 50x55x9.5-1 50x60x10 50x60x5/7 50x65.5 103x111x1.65 100x5 130 111 51 100 85 117x2 6,25 kg
GDC-ÇB 110x60 60x65x15-2 60x65x9.5-1 60x70x10 60x70x5/7 60x75.5 103x111x1.65 100x5 130 111 61 100 85 117x2 5,35 kg
GDC-ÇB 110x70 70x75x15-2 70x75x9.5-1 70x80x12 70x80x5/7 70x85.5 103x111x1.65 100x5 130 111 71 100 85 117x2 4,47 kg
GDC-ÇB 110x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 103x111x1.65 100x5 130 111 81 100 85 117x2 3,44 kg
GDC-ÇB 115x60 60x65x15-2 60x65x9.5-1 60x70x10 60x70x5/7 60x75.5 108x116x1.65 105x5 130 116 61 100 85 122x2 5,95 kg
GDC-ÇB 115x70 70x75x15-2 70x75x9.5-1 70x80x12 70x80x5/7 70x85.5 108x116x1.65 105x5 130 116 71 100 85 122x2 5,09 kg
GDC-ÇB 115x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 108x116x1.65 105x5 130 116 81 100 85 122x2 4,06 kg
GDC-ÇB 120x60 60x65x15-2 60x65x9.5-1 60x70x10 60x70x5/7 60x75.5 113x121x1.65 110x5 140 121 61 100 85 127x2 6,89 kg
GDC-ÇB 120x65 65x70x15-2 65x70x9.5-1 65x75x10 65x75x5/7 65x80.5 113x121x1.65 110x5 140 121 66 100 85 127x2 4,43 kg
GDC-ÇB 120x70 70x75x15-2 70x75x9.5-1 70x80x12 70x80x5/7 70x85.5 113x121x1.65 110x5 140 121 71 100 85 127x2 5,97 kg
GDC-ÇB 120x75 75x80x15-2 75x80x9.5-1 75x85x12 75x87x7/12 75x90.5 113x121x1.65 110x5 140 121 76 100 85 127x2 5,44 kg
GDC-ÇB 120x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 113x121x1.65 110x5 140 121 81 100 85 127x2 4,91 kg
GDC-ÇB 125x60 60x65x15-2 60x65x9.5-1 60x70x10 60x70x5/7 60x75.5 118x126x1.65 115x5 145 126 61 100 85 132x2 8,24 kg
GDC-ÇB 125x65 65x70x15-2 65x70x9.5-1 65x75x10 65x75x5/7 65x80.5 118x126x1.65 115x5 145 126 66 100 85 132x2 7,20 kg
GDC-ÇB 125x70 70x75x15-2 70x75x9.5-1 70x80x12 70x80x5/7 70x85.5 118x126x1.65 115x5 145 126 71 100 85 132x2 6,77 kg
GDC-ÇB 125x75 75x80x15-2 75x80x9.5-1 75x85x12 75x87x7/12 75x90.5 118x126x1.65 115x5 145 126 76 100 85 132x2 6,26 kg
GDC-ÇB 125x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 118x126x1.65 115x5 145 126 81 100 85 132x2 5,71 kg
GDC-ÇB 125x90 90x95x15-2 90x95x9.5-1 90x100x12 90x102x7/12 90x105.5 118x126x1.65 115x5 145 126 91 100 85 132x2 4,60 kg
GDC-ÇB 130x70 70x75x15-2 70x75x9.5-1 70x80x12 70x80x5/7 70x85.5 121.1x131x1.90 120x6 150 131 71 100 85 137x2 7,45 kg
GDC-ÇB 130x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 121.1x131x1.90 120x6 150 131 81 100 85 137x2 6,43 kg
GDC-ÇB 130x90 90x95x15-2 90x95x9.5-1 90x100x12 90x102x7/12 90x105.5 121.1x131x1.90 120x6 150 131 91 100 85 137x2 5,32 kg
GDC-ÇB 140x70 70x75x15-2 70x75x9.5-1 70x80x12 70x80x5/7 70x85.5 131.1x141x1.90 130x6 160 141 71 100 85 147x2 9,16 kg
GDC-ÇB 140x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 131.1x141x1.90 130x6 160 141 81 100 85 147x2 8,11 kg
GDC-ÇB 140x90 90x95x15-2 90x95x9.5-1 90x100x12 90x102x7/12 90x105.5 131.1x141x1.90 130x6 160 141 91 100 85 147x2 7,00 kg
GDC-ÇB 140x100 100x105x15-2 100x105x9.5-1 100x115x12 100x112x7/12 100x115.5 131.1x141x1.90 130x6 160 141 101 100 85 147x2 5,76 kg
GDC-ÇB 150x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 141.1x151x1.90 140x6 170 151 81 100 85 157x2 9,84 kg
GDC-ÇB 150x90 90x95x15-2 90x95x9.5-1 90x100x12 90x102x7/12 90x105.5 141.1x151x1.90 140x6 170 151 91 100 85 157x2 8,72 kg
GDC-ÇB 150x100 100x105x15-2 100x105x9.5-1 100x115x12 100x112x7/12 100x115.5 141.1x151x1.90 140x6 170 151 101 100 85 157x2 7,38 kg
GDC-ÇB 160x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 151.1x161x1.90 150x6 180 161 81 100 85 167x2 11,70 kg
GDC-ÇB 160x90 90x95x15-2 90x95x9.5-1 90x100x12 90x102x7/12 90x105.5 151.1x161x1.90 150x6 180 161 91 100 85 167x2 10,57 kg
GDC-ÇB 160x100 100x105x15-2 100x105x9.5-1 100x115x12 100x112x7/12 100x115.5 151.1x161x1.90 150x6 180 161 101 100 85 167x2 9,25 kg
GDC-ÇB 160x110 110x115x15-2 110x115x9.5-1 110x125x12 110x122x7/12 110x125.5 151.1x161x1.90 150x6 180 161 111 100 85 167x2 7,89 kg
GDC-ÇB 160x120 120x125x15-2 120x125x9.5-1 120x135x15 120x132x7/12 120x135.5 151.1x161x1.90 150x6 180 161 121 100 85 167x2 6,33 kg
GDC-ÇB 180x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 171.1x181x1.90 170x6 210 181 81 100 85 187x2 16,31 kg
GDC-ÇB 180x90 90x95x15-2 90x95x9.5-1 90x100x12 90x102x7/12 90x105.5 171.1x181x1.90 170x6 210 181 91 100 85 187x2 15,18 kg
GDC-ÇB 180x100 100x105x15-2 100x105x9.5-1 100x115x12 100x112x7/12 100x115.5 171.1x181x1.90 170x6 210 181 101 100 85 187x2 13,85 kg
GDC-ÇB 180x110 110x115x15-2 110x115x9.5-1 110x125x12 110x122x7/12 110x125.5 171.1x181x1.90 170x6 210 181 111 100 85 187x2 12,46 kg
GDC-ÇB 180x120 120x125x15-2 120x125x9.5-1 120x135x15 120x132x7/12 120x135.5 171.1x181x1.90 170x6 210 181 121 100 85 187x2 10,92 kg
GDC-ÇB 200x80 80x85x15-2 80x85x9.5-1 80x90x12 80x92x7/12 80x95.5 - 190x6 230 201 81 100 85 207x2 21,13 kg
GDC-ÇB 200x90 90x95x15-2 90x95x9.5-1 90x100x12 90x102x7/12 90x105.5 - 190x6 230 201 91 100 85 207x2 20,90 kg
GDC-ÇB 200x100 100x105x15-2 100x105x9.5-1 100x115x12 100x112x7/12 100x115.5 - 190x6 230 201 101 100 85 207x2 19,05 kg
GDC-ÇB 200x110 110x115x15-2 110x115x9.5-1 110x125x12 110x122x7/12 110x125.5 - 190x6 230 201 111 100 85 207x2 17,18 kg
GDC-ÇB 200x120 120x125x15-2 120x125x9.5-1 120x135x15 120x132x7/12 120x135.5 - 190x6 230 201 121 100 85 207x2 15,40 kg
GDC-ÇB 200x130 130x135x15-2 130x135x9.5-1 130x150x105 130x142x7/12 130x145.5 - 190x6 230 201 131 100 85 207x2 13,83 kg
GDC-ÇB 200x140 140x145x15-2 140x145x9.7-1 140x160x15 140x152x7/12 140x155.5 - 190x6 230 201 141 100 85 207x2 12,40 kg
GDC-ÇB 220x100 100x105x15-2 100x105x9.7-1 100x115x12 100x112x7/12 100x115.5 - 210x6 250 221 101 110 90 227x2.5 22,35 kg
GDC-ÇB 220x110 110x115x15-2 100x115x9.7-1 110x125x12 110x122x7/12 110x125.5 - 210x6 250 221 111 110 90 227x2.5 21,10 kg
GDC-ÇB 220x120 120x125x15-2 120x125x9.7-1 120x135x15 120x132x7/12 120x135.5 - 210x6 250 221 121 110 90 227x2.5 19,77 kg
GDC-ÇB 220x130 130x135x15-2 130x135x9.5-1 130x150x15 130x142x7/12 130x145.5 - 210x6 250 221 131 110 90 227x2.5 18,15 kg
GDC-ÇB 220x140 140x145x15-2 140x145x9.7-1 140x160x15 140x152x7/12 140x155.5 - 210x6 250 221 141 110 90 227x2.5 16,53 kg
GDC-ÇB 220x150 150x155x15-2 150x155x9.7-1 150x170x15 150x162x7/12 - - 210x6 250 221 151 110 90 227x2.5 15,10 kg
GDC-ÇB 220x160 160x165x15-2 160x165x9.7-1 160x180x15 160x172x7/12 - - 210x6 250 221 161 110 90 227x2.5 13,70 kg
GDC-ÇB 250x100 100x105x15-2 100x105x9.7-1 100x115x12 100x112x7/12 100x115.5 - 240x6 300 251 101 110 90 247x2.5 38,68 kg
GDC-ÇB 250x110 110x115x15-2 110x115x9.7-1 110x125x12 110x122x7/12 110x125.5 - 240x6 300 251 111 110 90 247x2.5 36,55 kg
GDC-ÇB 250x120 120x125x15-2 120x125x9.7-1 120x135x15 120x132x7/12 120x135.5 - 240x6 300 251 121 110 90 247x2.5 34,30 kg
GDC-ÇB 250x130 130x135x15-2 130x135x9.5-1 130x150x15 130x142x7/12 130x145.5 - 240x6 300 251 131 110 90 247x2.5 32,40 kg
GDC-ÇB 250x140 140x145x15-2 140x145x9.7-1 140x160x15 140x152x7/12 140x155.5 - 240x6 300 251 151 110 90 247x2.5 30,55 kg
GDC-ÇB 250x150 150x155x15-2 150x155x9.7-1 150x170x15 150x162x7/12 - - 240x6 300 251 151 110 90 247x2.5 28,40 kg
GDC-ÇB 250x160 160x165x15-2 160x165x9.7-1 160x180x15 160x172x7/12 - - 240x6 300 251 161 110 90 247x2.5 26,52 kg
