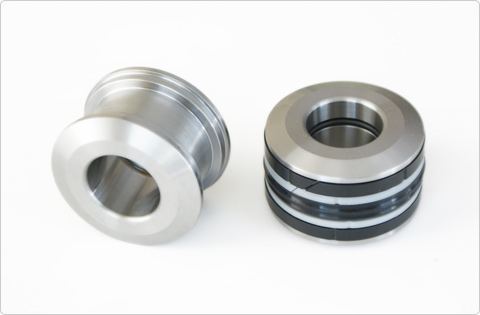

SAE 1050/ SAE 1040 GRADE BASIC TYPE PISTONS

SAE 1050/ SAE 1040 GRADE BASIC TYPE PISTONS SAE 1050/ SAE 1040 GRADE BASIC TYPE PISTONS

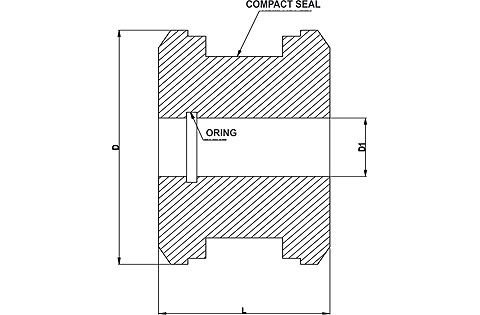

PRODUCT CODE KOMPACTSET ORING D D1 L
GDC-P / Ø 32x15 32x24x15.5x3,10 YOK 32 15 32
GDC-P / Ø 35x16 35x25x16.4x6,35 16x3 35 16 40
GDC-P / Ø 40x16 40x32x15.5x3,20 16x3 40 16 40
GDC-P / Ø 40x20 40x32x15.5x3,20 20x3 40 20 40
GDC-P / Ø 45x20 45x35x16,4x6,35 20x3 45 20 40
GDC-P / Ø 50x16 50x38x20,5x4,20 16x3 50 16 40
GDC-P / Ø 50x20 50x38x20,5x4,20 20x3 50 20 40
GDC-P / Ø 50x27 50x38x20,5x4,20 27x3 50 27 40
GDC-P / Ø 55x20 55x39x20,5x3,10 20x3 55 20 40
GDC-P / Ø 60x20 60x48x20,5x4,20 20x3 60 20 40
GDC-P / Ø 63x25 63x51x20,5x4,20 25x3 63 25 40
GDC-P / Ø 63x30 63x51x20,5x4,20 30x3 63 30 40
GDC-P / Ø 65x25 65x49x20,5x4,20 25x3 65 25 40
GDC-P / Ø 70x25 70x54x20,5x3,10 25x3 70 25 40
GDC-P / Ø 70x30 70x54x20,5x3,10 30x3 70 30 40
GDC-P / Ø 75x32 75x55x22,4x6,35 32x3 75 32 50
GDC-P / Ø 80x30 80x66x22,4x5,20 30x3 80 30 50
GDC-P / Ø 85x32 85x65x22,4x6,35 32x3 85 32 50
GDC-P / Ø 90x30 90x76x22,4x5,20 30x3 90 30 50
GDC-P / Ø 100x33 100x86x22,4x5,20 33x3 100 33 50
GDC-P / Ø 100x40 100x86x22,4x5,20 40x4 100 40 50
GDC-P / Ø 110x40 110x96x22,4x5,20 40x4 110 40 50
GDC-P / Ø 115x40 115x101x22,4x5,20 40x4 115 40 50
GDC-P / Ø 120x40 120x106x22,4x5,20 40x4 120 40 50
GDC-P / Ø 125x40 125x103x26,5x5,10 40x4 125 40 50
GDC-P / Ø 130x40 130x105x25,4x6,35 40x4 130 40 60
GDC-P / Ø 140x40 140x123x26,5x7,20 40x4 140 40 60
GDC-P / Ø 150x40 150x125x25,4x6,35 40x4 150 40 60
GDC-P / Ø 160x50 160x143x26,5x7,20 50x4 160 50 60
GDC-P / Ø 170x50 170x145x25,4x12,70 50x4 170 50 65
GDC-P / Ø 180x50 180x163x26,5x7,20 50x4 180 50 60
GDC-P / Ø 190x50 190x165x25,4x12,7 50x4 190 50 65
GDC-P / Ø 200x55 200x180x31,5x9,20 55x4 200 55 65
GDC-P / Ø 220x70 220x190x35,4x6,35 70x4 220 70 70
