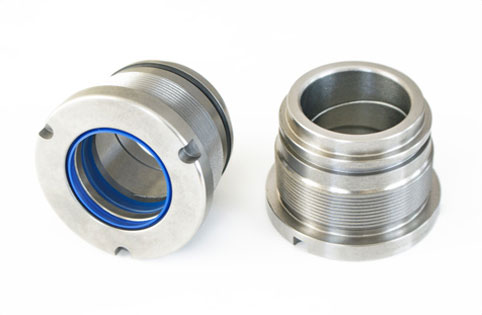

CAST IRON DIN 1691 GG25 / GG26 HYDRAULIC CYLINDER GLAND

CAST IRON DIN 1691 GG25 / GG26 HYDRAULIC CYLINDER GLAND CAST IRON DIN 1691 GG25 / GG26 HYDRAULIC CYLINDER GLAND
CODE U-RING WIPER ORING D D1 D2 L L1 THREAD KG
GDC-B 32x16 YOK 16x24x5/7 28x2,5 40 33 16 40 32 36x1,5 0,190 kg
GDC-B 32x18 18x25x5 18x26x5/7 28x2,5 40 33 18 40 32 36x1,5 0,170 kg
GDC-B 32x20 20x28x5 20x28x5/7 28x2.5 40 33 20 40 32 36x1,5 0,150 kg
GDC-B 32x22 22x30x6 22x30x5/7 28x2,5 40 33 22 40 32 36x1,5 0,120 kg
GDC-B 35x20 20x28x5 20x28x5/7 31x3 45 36 20 40 32 39x1,5 0,200 kg
GDC-B 35x22 22x30x6 22x30x5/7 31x3 45 36 22 40 32 39x1,5 0,170 kg
GDC-B 35-25 25x35x6 25x33x5/7 31x3 45 36 25 40 32 39x1.5 0,245 kg
GDC-B 40-16 YOK 16x24x5/7 36x3 50 41 16 40 32 45x1.5 0,330 kg
GDC-B 40x20 20x28x5 20x28x5/7 36x3 50 41 20 40 32 45x1,5 0,300 kg
GDC-B 40x22 22x30x6 22x30x5/7 36x3 50 41 22 40 32 45x1,5 0,270 kg
GDC-B 40x25 25x35x6 25x33x5/7 36x3 50 41 25 40 32 45x1,5 0,230 kg
GDC-B 40x28 28x38x6 28x36x5/7 36x3 50 41 28 40 32 45x1,5 0,190 kg
GDC-B 45x20 20x28x5 20x28x5/7 39.69x3.53 55 46 20 45 37 50x1.5 0,440 kg
GDC-B 45x25 25x35x6 25x33x5/7 39.69x3.53 55 46 25 45 37 50x1,5 0,370 kg
GDC-B 45x30 30x40x8 30x38x5/7 39.69x3.53 55 46 30 45 37 50x1,5 0,280 kg
GDC-B 50x20 20x28x5 20x28x5/7 44.45x3.53 60 51 20 45 37 55x1.5 0,570 kg
GDC-B 50x25 25x35x6 25x33x5/7 44.45x3.53 60 51 25 45 37 55x1,5 0,500 kg
GDC-B 50x28 28x38x6 28x36x5/7 44.45x3.53 60 51 28 45 37 55x1,5 0,450 kg
GDC-B 50x30 30x40x8 30x38x5/7 44.45x3.53 60 51 30 45 37 55x1,5 0,410 kg
GDC-B 50x32 32x40x8 32x40x5/7 44.45x3.53 60 51 32 45 37 55x1.5 0,380 kg
GDC-B 50x35 35x45x8 35x43x5/7 44.45x3.53 60 51 35 45 37 55x1,5 0,320 kg
GDC-B 50x36 36x46x8 36x44x5/7 44.45x3.53 60 51 36 45 37 55x1,5 0,300 kg
GDC-B 55x25 25x35x6 25x33x5/7 47.63x3.53 65 56 25 52 42 60x1.5 0,750 kg
GDC-B 55x30 30x40x8 30x38x5/7 47.63x3.53 65 56 30 52 42 60x1,5 0,650 kg
GDC-B 55x35 35x45x8 35x43x5/7 47.63x3.53 65 56 35 52 42 60x1,5 0,550 kg
GDC-B 60x30 30x40x8 30x38x5/7 53.57x3.53 70 61 30 52 42 65x1,5 0,830 kg
GDC-B 60x35 35x45x8 35x43x5/7 53.57x3.53 70 61 35 52 42 65x1,5 0,720 kg
GDC-B 60x40 40x50x10 40x48x5/7 53.57x3.53 70 61 40 52 42 65x1,5 0,590 kg
GDC-B 60x45 45x55x10 45x55x5/7 53.57x3.53 70 61 45 52 42 65x1.5 0,450 kg
GDC-B 63x30 30x40x8 30x38x5/7 57.15x3.53 75 64 30 52 42 69x1,5 0,970 kg
GDC-B 63x35 35x45x8 35x43x5/7 57.15x3.53 75 64 35 52 42 69x1,5 0,870 kg
GDC-B 63x36 36x46x8 36x44x5/7 57.15x3.53 75 64 36 52 42 69x1,5 0,840 kg
GDC-B 63x40 40x50x10 40x48x5/7 57.15x3.53 75 64 40 52 42 69x1,5 0,740 kg
GDC-B 63x45 45x55x10 45x55x5/7 57.15x3.53 75 64 45 52 42 69x1,5 0,590 kg
GDC-B 63x50 YOK 50x60x5/7 57.15x3.53 75 64 50 52 42 69x1,5 0,520 kg
GDC-B 65x30 30x40x8 30x38x5/7 59.92x3.53 80 66 30 63 52 70x1,5 1,280 kg
GDC-B 65x35 35x45x8 35x43x5/7 59.92x3.53 80 66 35 63 52 70x1,5 1,160 kg
GDC-B 65x40 40x50x10 40x48x5/7 59.92x3.53 80 66 40 63 52 70x1,5 1,010 kg
GDC-B 65x45 45x55x10 45x55x5/7 59.92x3.53 80 66 45 63 52 70x1,5 0,840 kg
GDC-B 70x25 25x35x6 25x33x5/7 65.10x3.53 85 71 25 63 52 75x2 1,640 kg
GDC-B 70x30 30x40x8 30x38x5/7 65.10x3.53 85 71 30 63 52 75x2 1,530 kg
GDC-B 70x35 35x45x8 35x43x5/7 65.10x3.53 85 71 35 63 52 75x2 1,410 kg
GDC-B 70x40 40x50x10 40x48x5/7 65.10x3.53 85 71 40 63 52 75x2 1,250 kg
GDC-B 70x45 45x55x10 45x55x5/7 65.10x3.53 85 71 45 63 52 75x2 1,090 kg
GDC-B 70x50 50x60x10 50x60x5/7 65.10x3.53 85 71 50 63 52 75x2 0,900 kg
GDC-B 70x55 55x65x10 55x65x5/7 65.10x3.53 85 71 55 63 52 75x2 0,720 kg
GDC-B 75x30 30x40x8 30x38x5/7 69.85x3.53 90 76 30 63 52 80x2 1,800 kg
GDC-B 75x35 35x45x8 35x43x5/7 69.85x3.53 90 76 35 63 52 80x2 1,680 kg
GDC-B 75x40 40x50x10 40x48x5/7 69.85x3.53 90 76 40 63 52 80x2 1,520 kg
GDC-B 75x45 45x55x10 45x55x5/7 69.85x3.53 90 76 45 63 52 80x2 1,370 kg
GDC-B 75x50 50x60x10 50x60x5/7 69.85x3.53 90 76 50 63 52 80x2 1,170 kg
GDC-B 75x55 55x65x10 55x65x5/7 69.85x3.53 90 76 55 63 52 80x2 0,970 kg
GDC-B 80x30 30x40x8 30x38x5/7 74x4 95 81 30 63 52 85x2 2,080 kg
GDC-B 80x35 35x45x8 35x43x5/7 74x4 95 81 35 63 52 85x2 1,950 kg
GDC-B 80x40 40x50x10 40x48x5/7 74x4 95 81 40 63 52 85x2 1,790 kg
GDC-B 80x45 45x55x10 45x55x5/7 74x4 95 81 45 63 52 85x2 1,620 kg
GDC-B 80x50 50x60x10 50x60x5/7 74x4 95 81 50 63 52 85x2 1,450 kg
GDC-B 80x55 55x65x10 55x65x5/7 74x4 95 81 55 63 52 85x2 1,250 kg
GDC-B 80x56 56x66x10 56x66x5/7 74x4 95 81 56 63 52 85x2 1,210 kg
GDC-B 80x60 60x70x10 60x70x5/7 74x4 95 81 60 63 52 85x2 1,030 kg
GDC-B 85x35 35x45x8 35x43x5/7 79x4 100 86 35 63 52 90x2 2,275 kg
GDC-B 85x40 40x50x10 40x48x5/7 79x4 100 86 40 63 52 90x2 2,100 kg
GDC-B 85x45 45x55x10 45x55x5/7 79x4 100 86 45 63 52 90x2 1,940 kg
GDC-B 85x50 50x60x10 50x60x5/7 79x4 100 86 50 63 52 90x2 1,750 kg
GDC-B 85x55 55x65x10 55x65x5/7 79x4 100 86 55 63 52 90x2 1,550 kg
GDC-B 85x60 60x70x10 60x70x5/7 79x4 100 86 60 63 52 90x2 1,330 kg
GDC-B 90x35 35x45x8 35x43x5/7 84x4 105 91 35 63 52 95x2 2,570 kg
GDC-B 90x40 40x50x10 40x48x5/7 84x4 105 91 40 63 52 95x2 2,420 kg
GDC-B 90x45 45x55x10 45x55x5/7 84x4 105 91 45 63 52 95x2 2,260 kg
GDC-B 90x50 50x60x10 50x60x5/7 84x4 105 91 50 63 52 95x2 2,070 kg
GDC-B 90x55 55x65x10 55x65x5/7 84x4 105 91 55 63 52 95x2 1,880 kg
GDC-B 90x60 60x70x10 60x70x5/7 84x4 105 91 60 63 52 95x2 1,670 kg
GDC-B 90x65 65x75x10 65x75x5/7 84x4 105 91 65 63 52 95x2 1,430 kg
GDC-B 100x40 40x50x10 40x48x5/7 90x5 115 101 40 82 70 105x2 4,060 kg
GDC-B 100x45 45x55x10 45x55x5/7 90x5 115 101 45 82 70 105x2 3,830 kg
GDC-B 100x50 50x60x10 50x60x5/7 90x5 115 101 50 82 70 105x2 3,610 kg
GDC-B 100x55 55x65x10 55x65x5/7 90x5 115 101 55 82 70 105x2 3,360 kg
GDC-B 100x56 56x66x10 56x66x5/7 90x5 115 101 56 82 70 105x2 3,290 kg
GDC-B 100x60 60x70x10 60x70x5/7 90x5 115 101 60 82 70 105x2 3,060 kg
GDC-B 100x65 65x75x10 65x75x5/7 90x5 115 101 65 82 70 105x2 2,760 kg
GDC-B 100x70 70x80x12 70x80x5/7 90x5 115 101 70 82 70 105x2 2,420 kg
GDC-B 100x75 75x85x12 75x87x12/7 90x5 115 101 75 82 70 105x2 2,030 kg
GDC-B 100x80 80x90x12 80x92x12/7 90x5 115 101 80 82 70 105x2 1,670 kg
GDC-B 110x50 50x60x10 50x60x5/7 100x5 130 111 50 82 70 115x2 4,650 kg
GDC-B 110x55 55x65x10 55x65x5/7 100x5 130 111 55 82 70 115x2 4,400 kg
GDC-B 110x56 56x66x10 56x66x5/7 100x5 130 111 56 82 70 115x2 4,380 kg
GDC-B 110x60 60x70x10 60x70x5/7 100x5 130 111 60 82 70 115x2 4,150 kg
GDC-B 110x65 65x75x10 65x75x5/7 100x5 130 111 65 82 70 115x2 3,820 kg
GDC-B 110x70 70x80x12 70x80x5/7 100x5 130 111 70 82 70 115x2 3,510 kg
GDC-B 110x75 75x85x12 75x87x12/7 100x5 130 111 75 82 70 115x2 3,110 kg
GDC-B 110x80 80x90x12 80x92x12/7 100x5 130 111 80 82 70 115x2 2,730 kg
GDC-B 115x50 50x60x10 50x60x5/7 105x5 130 116 50 82 70 120x2 5,150 kg
GDC-B 115x55 55x65x10 55x65x5/7 105x5 130 116 55 82 70 120x2 4,850 kg
GDC-B 115x60 60x70x10 60x70x5/7 105x5 130 116 60 82 70 120x2 4,580 kg
GDC-B 115x65 65x75x10 65x75x5/7 105x5 130 116 65 82 70 120x2 4,240 kg
GDC-K 115x70 70x80x12 70x80x5/7 105x5 130 116 70 82 70 120x2 3,940 kg
GDC-B 115x75 75x85x12 75x87x7/12 105x5 130 116 75 82 70 120x2 3,550 kg
GDC-K 115x80 80x90x12 80x92x7/12 105x5 130 116 80 82 70 120x2 3,180 kg
GDC-B 120x50 50x60x10 50x60x5/7 110x5 140 121 50 82 70 125x2 5,760 kg
GDC-B 120x55 55x65x10 55x65x5/7 110x5 140 121 55 82 70 125x2 5,540 kg
GDC-B 120x60 60x70x10 60x70x5/7 110x5 140 121 60 82 70 125x2 5,250 kg
GDC-B 120x65 65x75x10 65x75x5/7 110x5 140 121 65 82 70 125x2 4,950 kg
GDC-B 120x70 70x80x12 70x80x5/7 110x5 140 121 70 82 70 125x2 4,630 kg
GDC-B 120x75 75x85x12 75x87x7/12 110x5 140 121 75 82 70 125x2 4,230 kg
GDC-B 120x80 80x90x12 80x92x7/12 110x5 140 121 80 82 70 125x2 3,860 kg
GDC-B 120x85 85x95x12 85x97x7/12 110x5 140 121 85 82 70 125x2 3,420 kg
GDC-B 120x90 90x100x12 90x102x7/12 110x5 140 121 90 82 70 125x2 3,050 kg
GDC-B 125x50 50x60x10 50x60x5/7 115x5 145 126 50 82 70 130x2 6,350 kg
GDC-B 125x55 55x65x10 55x65x5/7 115x5 145 126 55 82 70 130x2 6,090 kg
GDC-B 125x60 60x70x10 60x70x5/7 115x5 145 126 60 82 70 130x2 5,850 kg
GDC-B 125x65 65x75x10 65x75x5/7 115x5 145 126 65 82 70 130x2 5,490 kg
GDC-B 125x70 70x80x12 70x80x5/7 115x5 145 126 70 82 70 130x2 5,190 kg
GDC-B 125x75 75x85x12 75x87x7/12 115x5 145 126 75 82 70 130x2 4,850 kg
GDC-B 125x80 80x90x12 80x92x7/12 115x5 145 126 80 82 70 130x2 4,430 kg
GDC-B 125x85 85x95x12 85x97x7/12 115x5 145 126 85 82 70 130x2 4,050 kg
GDC-B 125x90 90x100x12 90x102x7/12 115x5 145 126 90 82 70 130x2 3,570 kg
GDC-B 130x60 60x70x10 60x70x5/7 120x6 150 131 60 102 90 135x2 7,830 kg
GDC-B 130x70 70x80x12 70x80x5/7 120x6 150 131 70 102 90 135x2 6,970 kg
GDC-B 130x80 80x90x12 80x92x7/12 120x6 150 131 80 102 90 135x2 6,120 kg
GDC-B 130x90 90x100x12 90x102x7/12 120x6 150 131 90 102 90 135x2 5,100 kg
GDC-B 130x100 100x115x12 100x112x7/12 120x6 150 131 100 102 90 135x2 3,890 kg
GDC-B 140x60 60x70x10 60x70x5/7 130x6 160 141 60 102 90 145x2 9,410 kg
GDC-B 140x65 65x75x10 65x75x5/7 130x6 160 141 65 102 90 145x2 9,030 kg
GDC-B 140x70 70x80x12 70x80x5/7 130x6 160 141 70 102 90 145x2 8,660 kg
GDC-B 140x80 80x90x12 80x92x7/12 130x6 160 141 80 102 90 145x2 7,700 kg
GDC-B 140x85 85x95x12 85x97x7/12 130x6 160 141 85 102 90 145x2 7,250 kg
GDC-B 140x90 90x100x12 90x102x7/12 130x6 160 141 90 102 90 145x2 6,680 kg
GDC-B 140x100 100x115x12 100x112x7/12 130x6 160 141 100 102 90 145x2 5,470 kg
GDC-B 150x60 60x70x10 60x70x5/7 140x6 170 151 60 102 90 155x2 11,070 kg
GDC-B 150x70 70x80x12 70x80x5/7 140x6 170 151 70 102 90 155x2 10,360 kg
GDC-B 150x80 80x90x12 80x92x7/12 140x6 170 151 80 102 90 155x2 9,340 kg
GDC-B 150x90 90x100x12 90x102x7/12 140x6 170 151 90 102 90 155x2 8,400 kg
GDC-B 150x100 100x115x12 100x112x7/12 140x6 170 151 100 102 90 155x2 7,150 kg
GDC-B 160x60 60x70x10 60x70x5/7 150x6 180 161 60 102 90 165x2 12,830 kg
GDC-B 160x70 70x80x12 70x80x5/7 150x6 180 161 70 102 90 165x2 12,190 kg
GDC-B 160x80 80x90x12 80x92x7/12 150x6 180 161 80 102 90 165x2 11,330 kg
GDC-B 160x90 90x100x12 90x102x7/12 150x6 180 161 90 102 90 165x2 10,210 kg
GDC-B 160x100 100x115x12 100x112x7/12 150x6 180 161 100 102 90 165x2 8,940 kg
GDC-B 160x110 110x125x12 110x122x7/12 150x6 180 161 110 102 90 165x2 7,750 kg
GDC-B 160x120 120x135x15 120x132x7/12 150x6 180 161 120 102 90 165x2 6,310 kg
GDC-B 170x80 80x90x12 80x92x7/12 160x6 190 171 80 102 90 175x2 13,530 kg
GDC-B 170x90 90x100x12 90x102x7/12 160x6 190 171 90 102 90 175x2 12,250 kg
GDC-B 170x100 100x115x12 100x112x7/12 160x6 190 171 100 102 90 175x2 10,860 kg
GDC-B 170x110 110x125x12 110x122x7/12 160x6 190 171 110 102 90 175x2 9,400 kg
GDC-B 170x120 120x135x15 120x132x7/12 160x6 190 171 120 102 90 175x2 8,000 kg
GDC-B 180x70 70x80x12 70x80x5/7 170x6 200 181 70 102 90 185x2 16,010 kg
GDC-B 180x80 80x90x12 80x92x7/12 170x6 200 181 80 102 90 185x2 15,100  kg
GDC-B 180x90 90x100x12 90x102x7/12 170x6 200 181 90 102 90 185x2 14,070 kg
GDC-B 180x100 100x115x12 100x112x7/12 170x6 200 181 100 102 90 185x2 12,810 kg
GDC-B 180x110 110x125x12 110x122x7/12 170x6 200 181 110 102 90 185x2 11,520 kg
GDC-B 180x120 120x135x15 120x132x7/12 170x6 200 181 120 102 90 185x2 10,170 kg
GDC-B 180x130 130x150x15 130x142x7/12 170x6 200 181 130 102 90 185x2 8,680 kg
GDC-B 180x140 140x160x15 140x152x7/12 170x6 200 181 140 102 90 185x2 6,930 kg
GDC-B 200x90 90x100x12 90x102x7/12 190x6 220 201 90 102 90 205x2 18,300 kg
GDC-B 200x100 100x115x12 100x112x7/12 190x6 220 201 100 102 90 205x2 17,400 kg
GDC-B 200x110 110x125x12 110x122x7/12 190x6 220 201 110 102 90 205x2 16,000 kg
GDC-B 200x120 120x135x15 120x132x7/12 190x6 220 201 120 102 90 205x2 14,590 kg
GDC-B 200x130 130x150x15 130x142x7/12 190x6 220 201 130 102 90 205x2 12,860 kg
GDC-B 200x140 140x160x15 140x152x7/12 190x6 220 201 140 102 90 205x2 11,330 kg
GDC-B 220x100 100x115x12 100x112x7/12 210x6 250 221 100 102 90 225x2 22,600 kg
GDC-B 220x110 110x125x12 110x122x7/12 210x6 250 221 110 102 90 225x2 21,100 kg
GDC-B 220x120 120x135x15 120x132x7/12 210x6 250 221 120 102 90 225x2 19,770 kg
GDC-B 220x130 130x150x15 130x142x7/12 210x6 250 221 130 102 90 225x2 18,100 kg
GDC-B 220x140 140x160x15 140x152x7/12 210x6 250 221 140 102 90 225x2 16,540 kg
